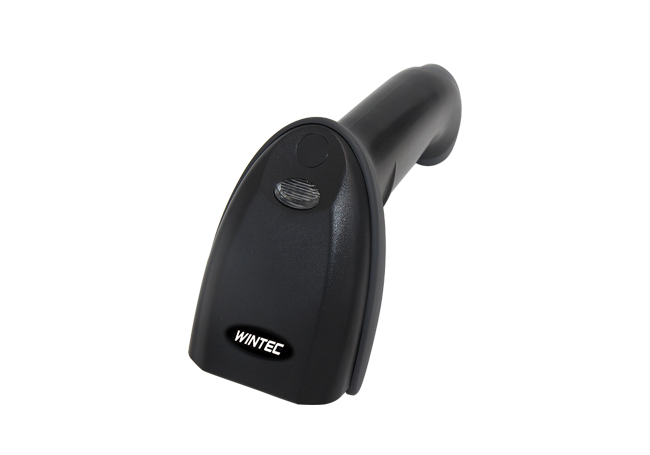

Scanner

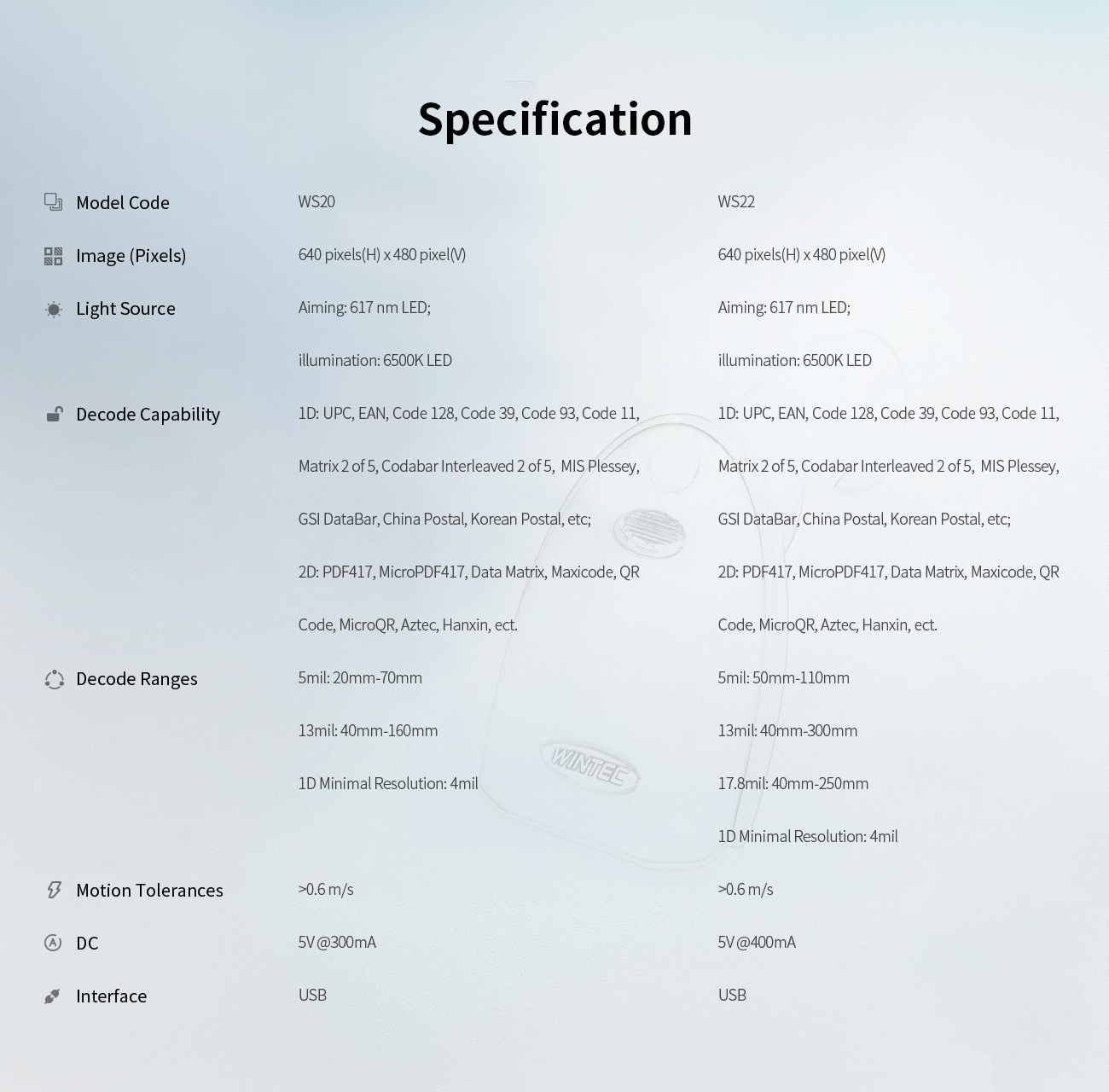

Spezifikation Treiber
Details Parameter


Peripheriegerät
ModellWS20WS22WS73WS80
Bildsensor (Pixel)640 pixels(H) x 480 pixel(V)640 pixels(H) x 480 pixel(V)640 pixels(H) x 480 pixel(V)1280 pixels(H) x 1080 pixel(V)
LichtquelleAiming: 617 nm LED;
illumination: 6500K LED		Aiming: 617 nm LED;
illumination: 6500K LED		Aiming: 617 nm LED;Aiming: 617 nm LED;
Dekodierfähigkeit1D: UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, MIS Plessey, GSI DataBar, China Postal, Korean Postal, etc;
2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, ect.		1D: UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, MIS Plessey, GSI DataBar, China Postal, Korean Postal, etc;
2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, ect.		1D: UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, MIS Plessey, GSI DataBar, China Postal, Korean Postal, etc;
2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, ect.		1D: UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, ect.
Scan‑Distanzen5mil:20mm-70mm
13mil:40mm-160mm
1D Minimal Resolution：4mil		5mil:50mm-110mm
13mil:40mm-300mm
17.8mil: 40mm-250mm
1D Minimal Resolution：4mil		5mil:0mm-40mm
13mil:0mm-150mm
1D Minimal Resolution：3.9mil		5mil:0mm-50mm
13mil:0mm-220mm
1D Minimal Resolution：3mil
Bewegungstoleranzen>0.6m/s>0.6m/s>2m/s>2m/s
Stromversorgung (DC)5V @300mA5V @400mA5V @400mA5V @500mA
SchnittstelleUSB，RS232USB，RS232USB，RS232USB，RS232
Abmessungen (mm)170x95x70180x107x7083x80x147152x149x80
